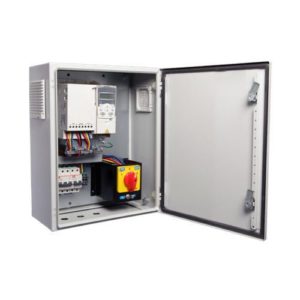

Solar AC Submersible Pump Controller

PRODUCT DESCRIPTION

Solar Submersible Pumping system converts solar energy directly into electric energy, and then drives motors to drive submersible pumps to pump water from submersible pumps, rivers, lakes and other water sources. The system consists of solar panels, solar pump controller and submersible pump.

Solar Pump Controller converts the direct current of solar panel into alternating current, thereby driving various AC motor submersible pumps (centrifugal pump, irrigation pump, deep well water pump, swimming pool pump etc.) the input can be the solar DC power supply (DC60-450VDC；DC 150V-450V, DC 250V-780V), also can be single phase or three phase AC power supply (AC110VAC，AC 220V, 380V, 460VAC), built-in MPPT control system to maximize the output power of the PV array, is very suitable for use in remote and dry areas.

Our Solar Pump Controller is a high-efficiency solar water pump controller which can make full use of solar energy to drive submersible pumps for agricultural irrigation, water supply system, fountains, ground water lowering and etc. As the solar submersible pumping system is eco-friendly and economical, The Solar Pump Controllers of high MPPT efficiency have been widely used in India & different countries.

PRODUCT TECHNICAL SPECIFICATIONS & PARAMETERS

AC Input
Input voltage (Vac) 380V (-15%) ~ 440(+10%)
Input frequency (Hz) 47~63
AC Output
Output voltage (Vac) 0 – input voltage
Output frequency (Hz) 0-400
DC Input
Start voltage (V) 300
Max DC voltage (V) 800
Min work voltage (V) 250
Recommended MPPT Voltage (V) 300-750
Recommended input work Voltage (V) 550
Others
Protective degree IP 42 / IP43/ IP51/ IP53/ IP54/ IP55/ IP65/ IP66
Cooling method Forced air cooling
Interface LED Keypad
Professional Function
Protection function Under load or phase loss protection
MPPT function Automatic factory setting
Auto run / stop Sleep when the light is weak & wake up when the light is strong
Water level monitor Sleep when the water is full and wake up when the water level is low
Overload capability
120% of rated current 1 minute
150% of rated current 10 seconds
HP Kw Rated Input current (A) Rated output current (A) Max. DC input current (A)
3.0 2.2 5.8 5.5 12
5.0 4.0 13.5 9.5 16.5
7.5 5.5 19.5 14 23.9
10 7.5 25 18.5 30.6
15 11 32 25 39.2
22 15 40 32 49
25 18.5 47 38 50
30 22 51 45 60
40 30 70 60 81
50 37 80 75 90
60 45 98 92 130

APPLICATIONS

  • Agriculture Irrigation
  • Wastewater Treatment
  • Resorts / Hotels / Tourist sites / Health Centre
  • Industrial Range
